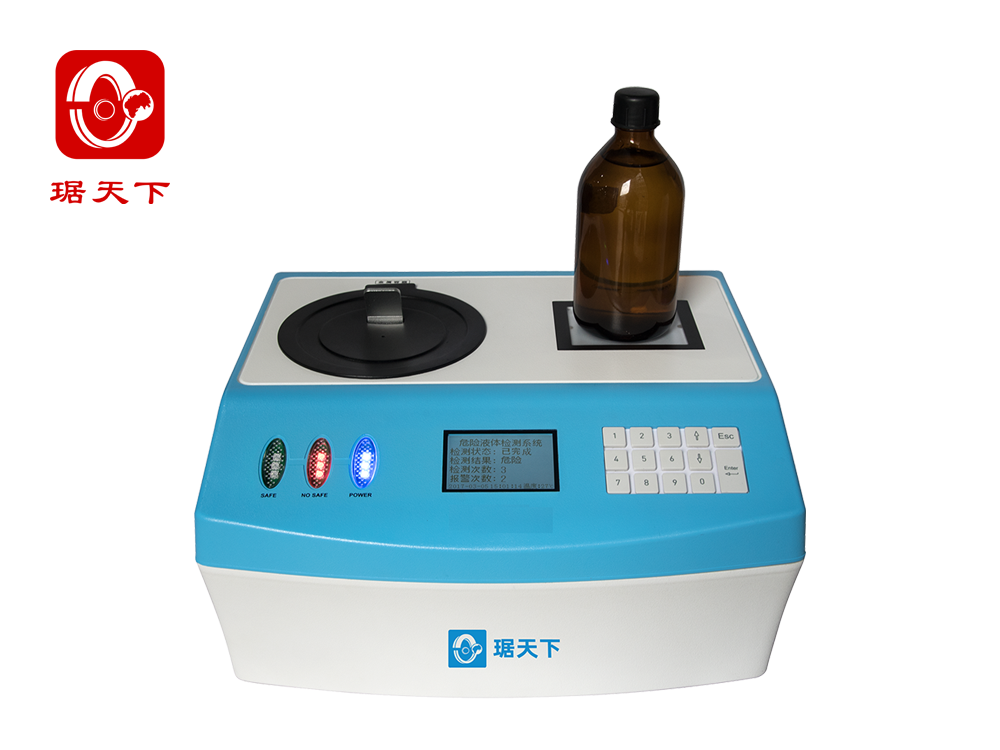

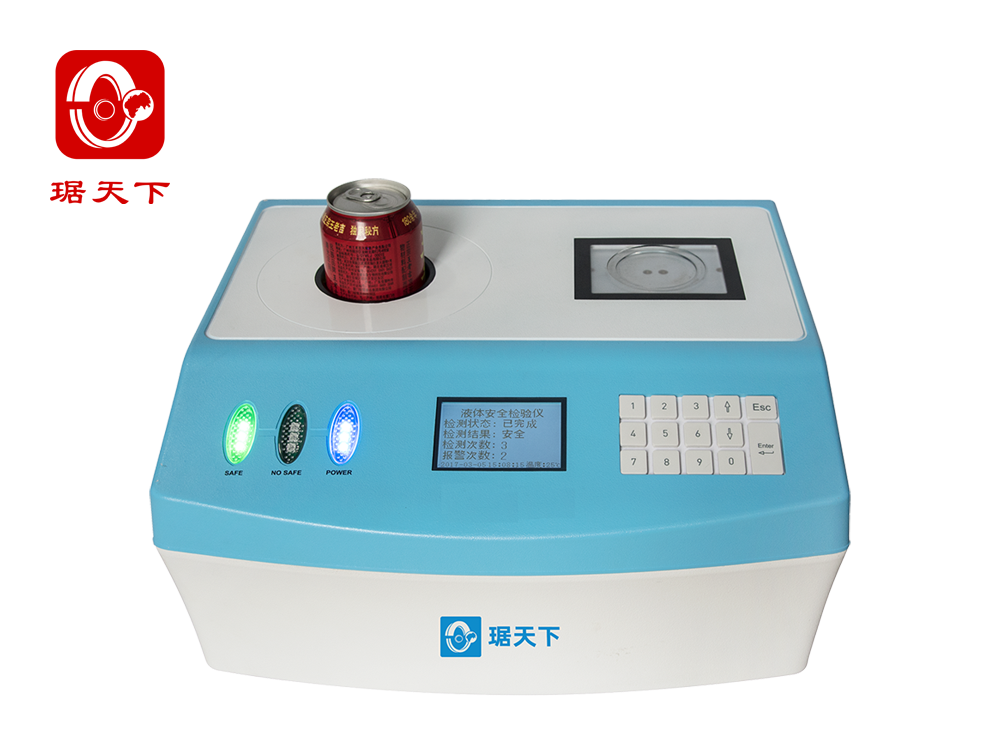

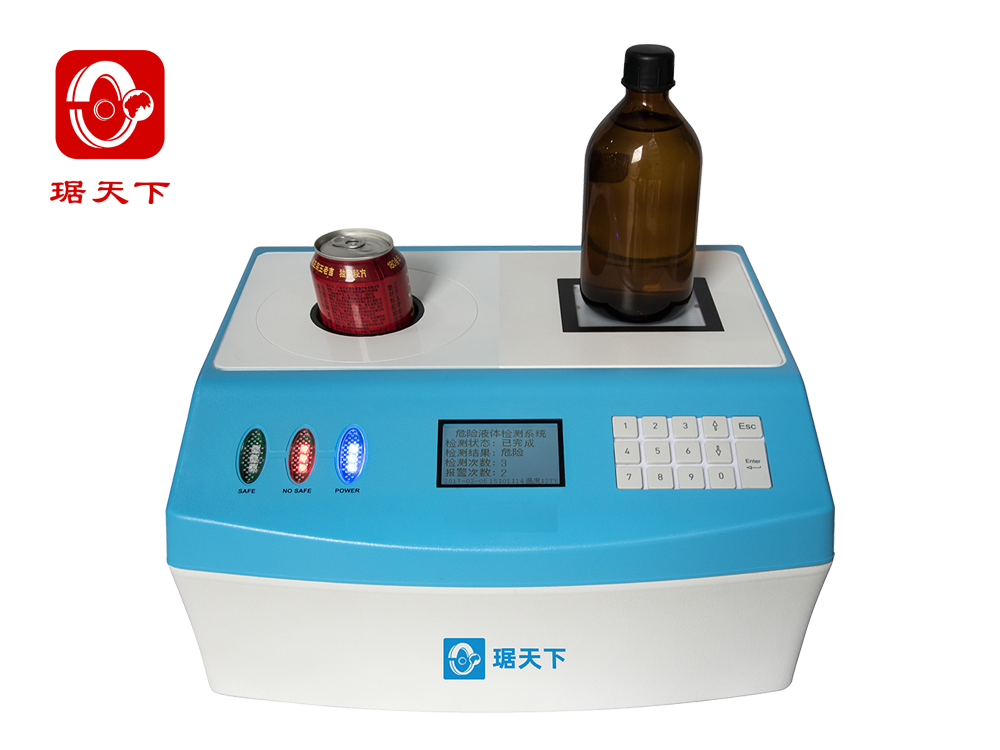

Tabletop Dangerous Liquid Detector PA500

分享到：

Product Detail

PA1000 Adopting ultra wideband pulse microwave reflection method and thermal conductivity method, it is suitable for the inspection of various common packaging liquids such as glass, plastic, metal, ceramics, etc. It can automatically detect flammable, explosive, and perishable dangerous liquids without opening the liquid packaging, and the recognition rate is accurate and efficient. Its purpose is to prevent dangerous liquids (liquids that can cause combustion or explosion) from entering safe areas, and it can be widely used in densely populated and important activity venues such as stations, subways, government agencies, sports venues, and other necessary safety inspection places.




Functional Features

◆ Adopting ultra wideband pulse microwave reflection method and thermal conductivity method, the radiation free setting is harmless to the human body and the tested object, and the detection method is environmentally friendly and safe

This product can accurately detect sulfuric acid and more than 40 types of flammable and corrosive liquids including gasoline, kerosene, diesel, hydrochloric acid, nitric acid, ether, etc

It only takes 1 second to detect non-metallic material bottle liquid

The instrument for detecting the bottom of the container allows for detection without leaving a lot of liquid inside the container being tested

The detection results are displayed in two modes: indicator light alarm and sound alarm, which are intuitive and easy to distinguish




Technical indicators

◆ Applicable liquid packaging materials: capable of detecting liquids packaged in different materials such as iron, aluminum, plastic, glass, and ceramics

◆ Types of detectable hazardous liquids: flammable, explosive, and perishable hazardous liquids

◆ Detectable volume size: ceramic cans, glass bottles, PET plastic bottles 30mm ≤ diameter ≤ 200mm; Metal cans (iron, aluminum cans) with a diameter of ≤ 80mm;

Minimum liquid volume: Metal tank container/tank liquid volume ≥ 100ml, non-metal container ≥ 100ml

◆ detectable effective distance: 30mm from the bottom of metal containers, 60mm from non-metallic containers

Dangerous liquid display: The indicator light is red and accompanied by a long beep of the buzzer

◆ Safe liquid display: The indicator light is green and accompanied by a short alarm sound

◆ Power on time: 2.8s, no preheating required

Self verification function: It has a self verification function with a self verification time of 1.8 seconds.

◆ Automatic counting function: It can automatically calculate the number of detected objects.

◆ Identity verification function: It has identity verification function.

◆ Human computer interface inspection: Provides a fully Chinese interface and comes with a built-in light source. Equipment users can adjust equipment parameters through the keyboard according to the working environment

◆ Detectable liquid category: using bottle bottom detection method. Under normal measurement mode and strong acid and strong alkali mode, the instrument can alarm for flammable or corrosive dangerous liquids in 32 sealed containers, including 93 # gasoline, hydrochloric acid, sulfuric acid, petroleum ether, etc.

◆ Testing time: 1 second for insulated containers (plastic, glass, ceramic containers)

◆ Testing time: Conductive containers (aluminum cans, iron cans): 8 seconds

Alarm mode: sound/light alarm/LCD graphic display, turn off the alarm sound separately.

Alarm reset: The device can be manually or automatically reset after an alarm occurs for the next detection.



◆ Data storage check: Liquid detection result storage and retrieval function, with a storage capacity of 10000 tests, and the ability to export data using standard network interfaces or USB interfaces, which can be read and analyzed by PC upper software.



Basic parameters

◆ Dimensions: 410 (width) X355 (depth) X280 mm (height)

◆ Weight: ≤ 9Kg

◆ Power consumption: 10W

◆ Power supply: AC180-240V (50/60Hz)

◆ Detection bottle temperature: 5-35 ℃

◆ Storage temperature/relative humidity: -40 ℃~+60 ℃/5%~95% (non condensing)

◆ Operating temperature/relative humidity: 15 ℃~+35 ℃/5%~95% (non condensing)
