Sole metal detector

分享到：

Product Detail

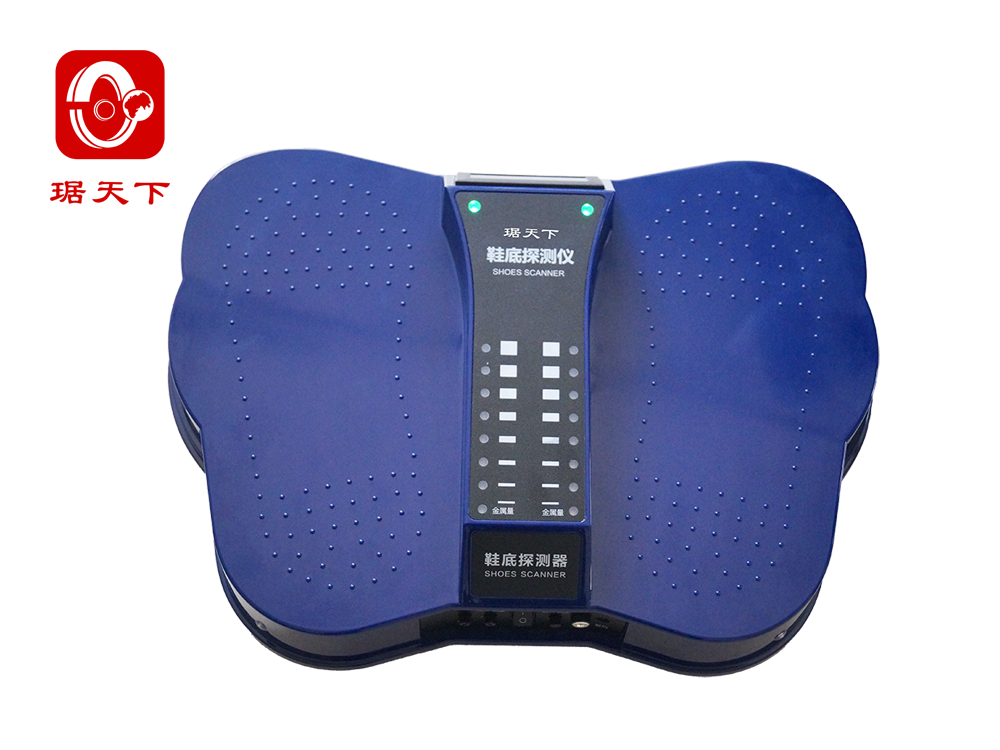

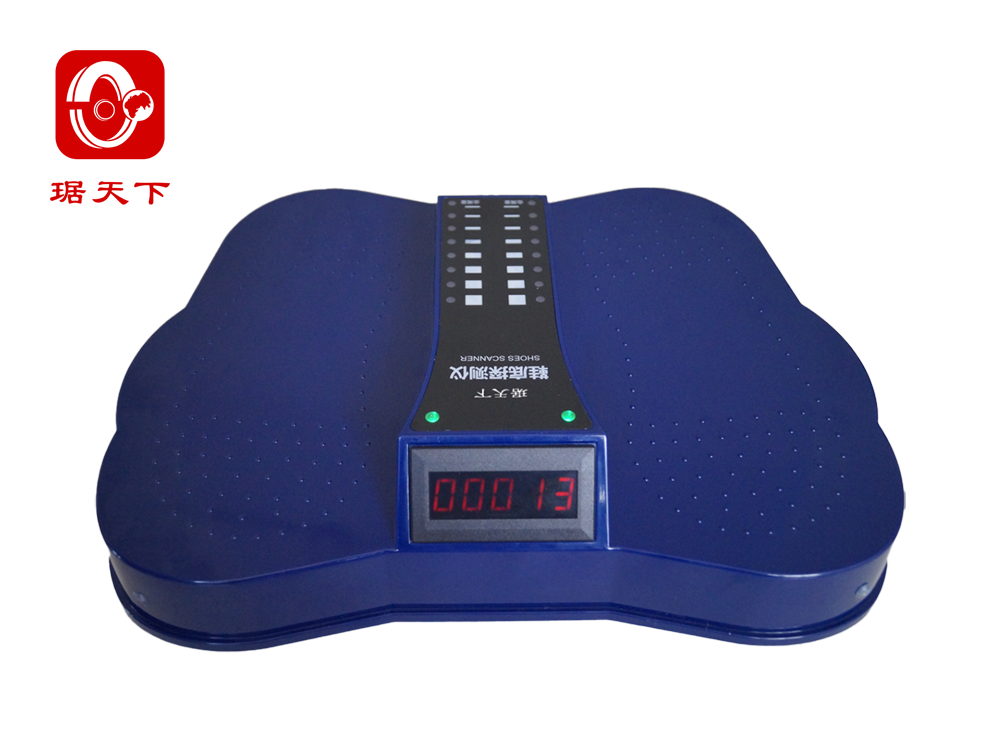

PA-001A shoe sole metal detector adopts a butterfly shaped appearance design and is currently the smallest shoe sole metal detector in China. This product is used in places where security gates cannot detect or where it is inconvenient to take off shoes. It can quickly detect various dangerous items hidden in the shoe sole. For example, small blades, small saw blades, various metals, etc., have various advantages such as stable performance, energy saving and environmental protection, beautiful appearance, clear and intuitive operation, easy to carry, etc;



Technical performance

Easy to operate, ultra-thin and ultra small in size, portable;

Can detect with one or both feet, and can accurately alarm and count;

Strong environmental adaptability;

Can automatically identify whether there is metal and sound an alarm;

There are no requirements for the standing posture or standing time of the security personnel being checked;

Equipped with backup batteries, environmentally friendly and safe;

In dimly lit environments, there are obstacle warning LED indicators to prevent pedestrian collisions;



Basic parameters

Alarm mode: Sound and light alarm

Working power supply: DC12V

Working temperature: -5 ℃ to+55 ℃

Working humidity: 5% -95%

Maximum load capacity: 150kgs

Net weight of equipment: 1.8kg

Dimensions: Upper width 400mm, lower width 300mm, height 120mm



Theoretical detection distance

Paper clip: 30mm

One yuan coin: 100mm

Art knife: 100mm

Dagger: 300mm

Pistol: 400mm
