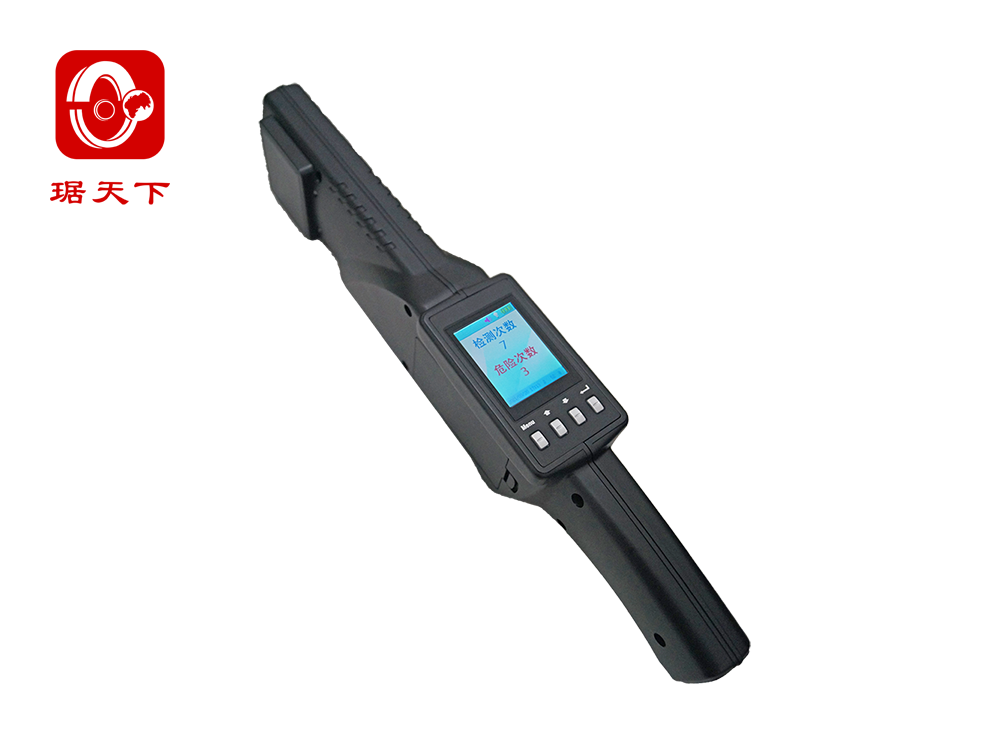

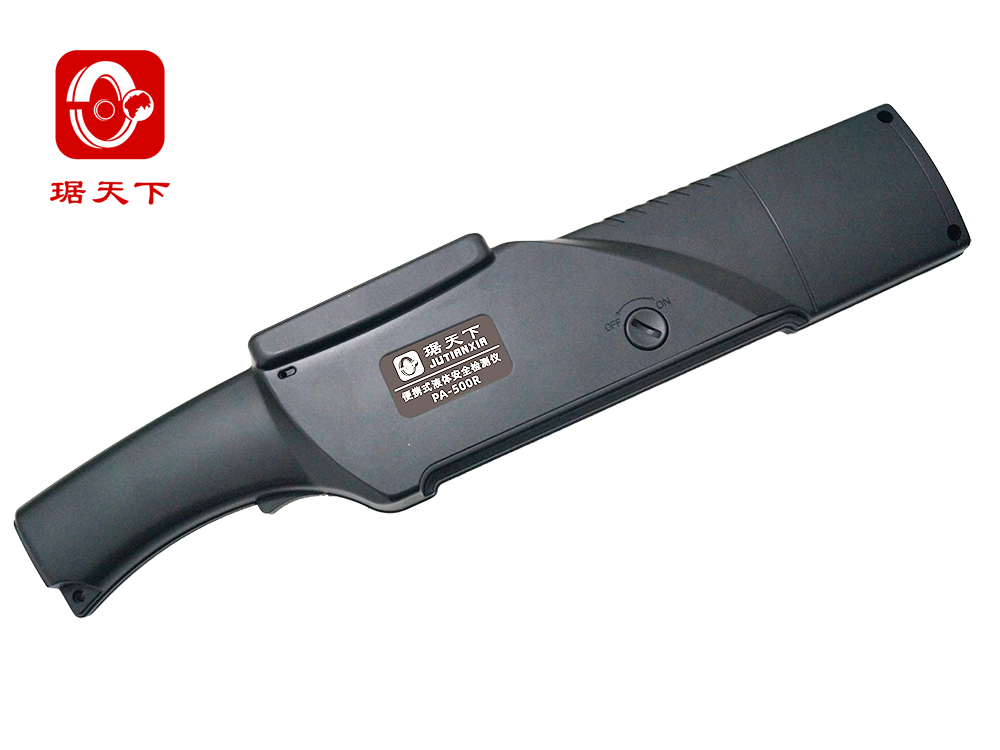

Handheld liquid detector PA500R

分享到：

Product Detail

PA500R security inspection instrument specifically designed to detect flammable and explosive liquids. Small in size, fast in analysis, and easy to operate, it can quickly identify flammable and explosive liquids without contact with liquids. It is widely used in security checks at stations, subways, airports, public security, law enforcement, government agencies, large-scale sports events, and other places.




technical characteristics

◆ Self calibration function test: The instrument has a self calibration function, and the self calibration time does not exceed 3 seconds

◆ Measurable container size: Capacity: not less than 50ml, height: not less than 60mm, diameter: not less than 30mm

◆ Alarm mode: It can sound an alarm or display an LCD alarm

◆ Data storage: The device can provide storage and retrieval functions for liquid detection results, with a storage capacity of no less than 5000 tests. It has data statistics and upload functions connected to a computer, and can export data using a standard USB interface

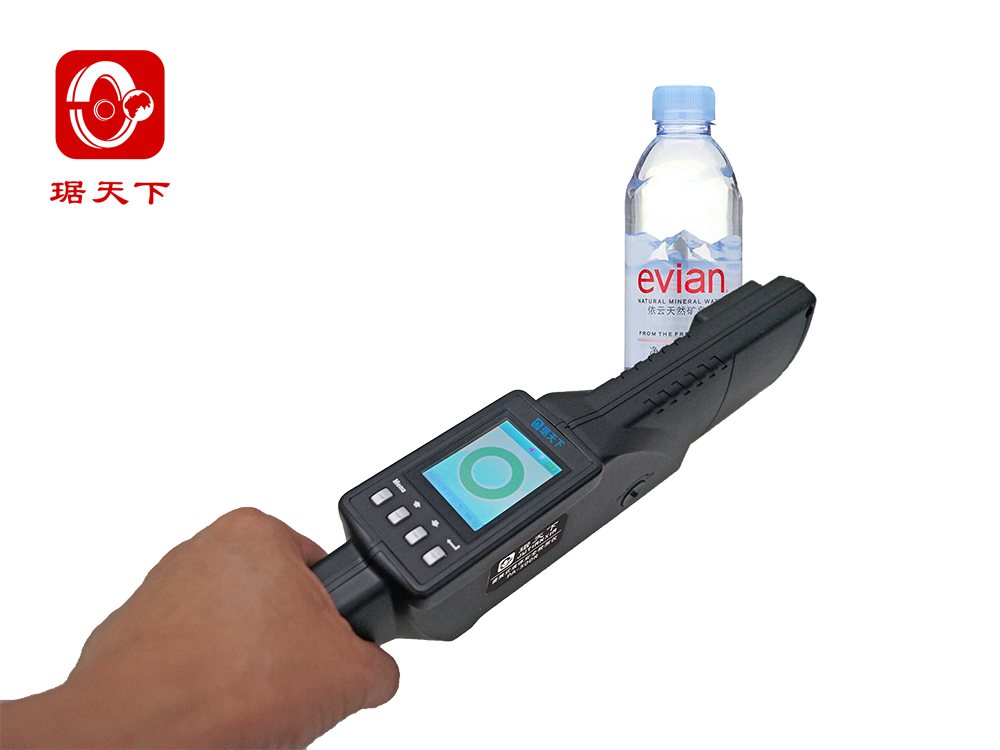

Sampling method: The equipment uses non-contact safety inspection technology, which can achieve liquid item safety inspection without opening the container. It can be detected at a distance of 5mm from the inspected container

◆ Alarm mode: sound/light alarm/LCD graphic display, can independently turn off the alarm sound

◆ Human computer interface inspection: Provides a fully Chinese or graphical interface, uses a color LED display screen, and comes with a built-in light source, with night time fill light function

Power supply mode: The device supports high-capacity lithium rechargeable battery power supply mode, which can ensure that the device can be used continuously for no less than 1000 times after one charge is completed, and the continuous working time is not less than 8 hours

◆ Detectable types: gasoline, kerosene, diesel, methanol, anhydrous ethanol, isopropanol, n-propanol, tert butanol, ethanol (70%), isopropanol (70%), diethylene glycol, methylamine alcohol solution, acetone, cyclohexanone, benzene, toluene, xylene, nitrobenzene, styrene, ether, propyl ether, petroleum ether, methyl tert butyl ether, trichloromethane, dichloroethane, propylene oxide, n-pentane, cyclopentane, n-hexane, cyclohexane, methyl cyclohexane, n-heptane, n-octane, propionaldehyde, acetaldehyde, tetrahydrofuran, pyridine, carbon disulfide, diethylamine 1-4-dioxane, methyl acrylate, butyl butyrate, pine perfume, banana water, paint, paint thinner, oleic acid, acetic acid, sulfuric acid, hydrochloric acid, nitric acid, sodium hydroxide aqueous solution (40%), potassium hydroxide aqueous solution (40%)




Basic parameters

◆ Composition: Host, charging base, etc

◆ Host size: 397 (length) x 56 (width) x 72 (height) mm

◆ Weight: 530g (including battery)

◆ Startup time: 14.5 seconds

◆ Analysis and testing time: 3 seconds

◆ Self calibration function test: The instrument has a self calibration function, and the self calibration time does not exceed 3 seconds.

◆ Measurable container size: Capacity: not less than 50ml, height: not less than 60mm, diameter: not less than 30mm

◆ Alarm mode: It can sound an alarm or display an LCD alarm

◆ Working temperature: 0 ℃ -+45 ℃

◆ Power supply mode: The device supports high-capacity lithium rechargeable battery power supply mode, which can ensure that the device can be used continuously for no less than 1000 times after one charge is completed, and the continuous working time is not less than 8 hours
